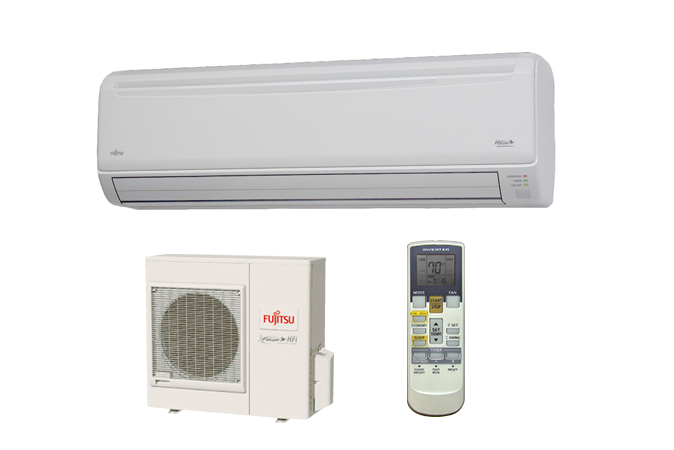

AIRSTAGE SINGLE-ROOM MINI-SPLIT SYSTEMS Wall Mounted RLF/RLX Series High SEER 30RLX

Indoor Unit Systems: ASU30RLX, Outdoor Unit: AOU30RLX

Indoor Unit:
ASU30RLX
Outdoor Unit:
AOU30RLX
Downloads:
Operation Manual
Warranty
17.5 SEER
  • INVERTER 6 year compressor 2year parts Warranty. Refrigerant R410A ENERGY STAR®

  • Inverter Technology
  • ENERGY STAR® Qualified
  • Clean Air
  • Quiet Operation
  • Wireless Remote Controller
  • Washable Panel Filter
  • Smart System: Auto Mode
  • Humidity Control

Cooling  30,000 BTU/h
Heating  32,000 BTU/h

Specification
Power Source Voltage/Frequency/Phase 208-230/60/1
Capacity Cooling BTU/h 22,000(9,900~32,400)
Heating 27,600(8,000~37,500)
HSPF BTU/hW 9.5
SEER BTU/hW 17.5
EER Cooling/Heating W/W 10.0
Operation Range Cooling °F(°C) 0~115 (-18~46)
Heating 0~75 (-18~24)
Moisture Removal Pt./h(l/h) 9.5 (4.5)
MAX.CRT.BKR A 30
Air Circ. C.F.M. Hi (m³/h) 659 (1,120) Clg
677 (1,150) Htg
Medium 530 (900)
Low 435 (740)
Quiet 365 (620)
Noise Level Hi dB(A)
15RLS3
49/49
Medium 42/42
Low 37/37
Quiet 33/33
Outdoor Fan Speed RPM 850/850
Outdoor Noise Level dB(A)
Clg/Htg
54/55
Current Cooling A 13.2/17.0
Heating 13.1/18.5
Power Use Cooling kw 3.0/3.87
Heating 2.99/4.22
Fan Speeds Stage 4+Auto
Air Direction Horizontal Automatic
Vertical Automatic
Air Filter Washable
ENERGY STAR® Qualified No
Connection Method Flare
Combined Min.Lgth Ft (m) 16 (5)
Max.Lgth 164 (50)
(pre-charge: 66’)
Max. Vertical Diff. Ft (m) 98 (30)
Conn. Pipe Diameter Indoor Inch Suc. 5/8#
Outdoor Dis. 3/8#
Net Weight Indoor lbs.(kg) 31 (14)
Outdoor 135 (61)
Dimensions Height Indoor Inch 12-5/8
mm 320
Outdoor Inch 32-3/4
mm 830
Width Indoor Inch 39-1/4
mm 998
Outdoor Inch 35-3/8
mm 900
Depth Indoor Inch 9
mm 228
Outdoor Inch 13
mm 330
Refrigerant (Global Warming Potential) R410A
Scroll
Dimensions

Indoor Unit: ASU30RLX

Indoor Units: Dimensions

Outdoor Unit: AOU30RLX

Outdoor Units: Dimensions
