AIRSTAGE SINGLE-ROOM MINI-SPLIT SYSTEMS Wall Mounted LPAS Series Entry Level 12LPAS1

AIRSTAGE

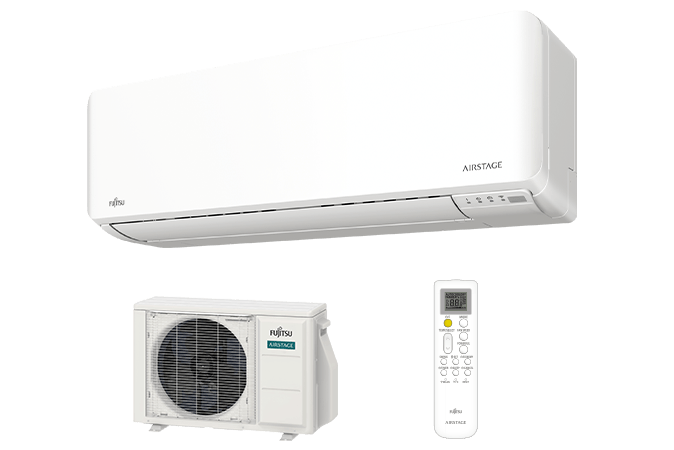

Indoor Unit Systems: ASUH12LPAS, Outdoor Unit: AOUH12LPAS1

Indoor Unit:
ASUH12LPAS
Outdoor Unit:
AOUH12LPAS1
Downloads:
Warranty
Up to 20.0 SEER
  • INVERTER 7 year compressor 5year parts Warranty. Refrigerant R410A

Features

  • Energy efficient - Up to 20.0 SEER and up to 11.0 HSPF
  • Revamped controls platform, featuring 2 communication (UART) ports
  • Service monitoring menu through UTY-RNRUZ5
  • Indoor unit with HCRC (High Corrosion Resistant Copper) coils
  • High voltage electronic components are coated with silicon to prevent damage
  • Compact outdoor unit and extended line set lengths
  • Washable filter factory provided with IDU
  • Whisper-quiet operation
  • Compatible with 2-wire wired remote controllers

Sleep Timer: Automatically adjusts the temperature while you sleep to make you more comfortable. Minimum Heat Mode: Sets room temperature to 50°F, keeping temperatures above freezing and reducing power consumption. Auto Louver: Up/Down: Redirects airflow automatically with seven position up and down motion which can be set to auto swing. Auto Restart/Reset: Following a power failure, systems will automatically restart in the same operating mode as before, once power has been restored. Auto restart: In the event of a temporary power failure, the air conditioner will automatically restart in the same operating mode as before, once the power supply is restored. Economy Mode: Thermostat setting automatically changes according to the temperature to avoid unnecessary cooling and heating.

Cooling  12,000 BTU/h
Heating  14,000 BTU/h
Specification
Power Source Voltage/Frequency/Phase 208-230/60/1
Capacity Cooling BTU/h 33,000(9,900~34,100)
Heating 34,000(10,200~35,000)
HSPF BTU/hW 9.0
SEER BTU/hW 15.5
EER Cooling/Heating W/W 8.5
Operation Range Cooling °F(°C) 14~115 (-10~46)
Heating 5~75 (-15~24)
Moisture Removal Pt./h(l/h) 10.1 (4.8)
MAX.CRT.BKR A 30
Air Circ. C.F.M. Hi (m³/h) 695 (1,180)
Medium 530 (900)
Low 436 (740)
Quiet 365 (620)
Noise Level Hi dB(A)
15RLS3		 50/50
Medium 42/42
Low 37/37
Quiet 32/33
Outdoor Fan Speed RPM 850/850
Outdoor Noise Level dB(A)
Clg/Htg		 52/55
Current Cooling A 17.0/18.0
Heating 14.8/18.8
Power Use Cooling kw 3.88/4.10
Heating 3.39/4.28
Fan Speeds Stage 4+Auto
Air Direction Horizontal Automatic
Vertical Automatic
Air Filter Washable
Connection Method Flare
Combined Min.Lgth Ft (m) 16 (5)
Max.Lgth 165 (50)
(pre-charge: 66’)
Max. Vertical Diff. Ft (m) 98 (30)
Conn. Pipe Diameter Indoor Inch Suc.5/8
Outdoor Dis.3/8
Net Weight Indoor lbs.(kg) 31 (14)
Outdoor 134 (61)
Dimensions Height Indoor Inch 12-5/8
mm 320
Outdoor Inch 32-11/16
mm 830
Width Indoor Inch 39-5/16
mm 998
Outdoor Inch 35-7/16
mm 900
Depth Indoor Inch 9
mm 228
Outdoor Inch 13
mm 330
Refrigerant (Global Warming Potential) R410A
Scroll
Dimensions

Indoor Unit: ASUH12LPAS

Indoor Units: Dimensions

Outdoor Unit: AOUH12LPAS1

Outdoor Units: Dimensions
