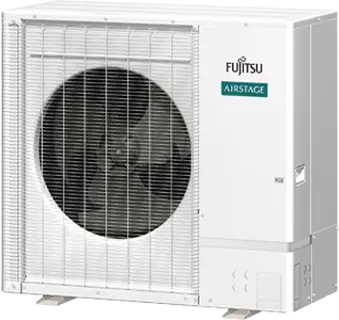

AIRSTAGE VRF Systems AIRSTAGE J-7 Outdoor Units Technical Information
Features
Energy Efficient
Ratings reach up to 23.1 SEER2 and 10.3 HSPF2. R-32 refrigerant has a global warming potential (GWP) of 675.
Compact Size
With a smaller footprint and single fan design, these new J-7 R-32 outdoor units deliver premium performance in a compact footprint. The single-fan chassis measures 39-11/16 in. (H) × 42-1/2 in. (W) × 18-7/8 in. (D).
Year-Round Comfort
Cooling from 23°F to 126°F (-5°C to 52°C) and heating from -15°F to 70°F (-26°C to 21°C). A factory-installed base pan heater supports cold-climate operation.
Quiet Operation
Ductless heat pumps and air conditioners are comprised of an indoor and outdoor unit, allowing for a peaceful inside environment by enabling components like compressors and motors outdoors to be installed outside.
Specifications
- Sound Level: As low as 55 dB(A)
- IEER: Up to 19.20
- EER: Up to 9.25
- Cooling Operating Range: 23°F to 126°F (-5°C to 52°C)
- Heating Operation Range: -15°F to 70°F (-26°C to 21°C)
Warranty
7 Year Compressor, 5 Year Parts out-of-the-box Warranty.
10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.
12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence and installed by a Fujitsu Elite contractor.

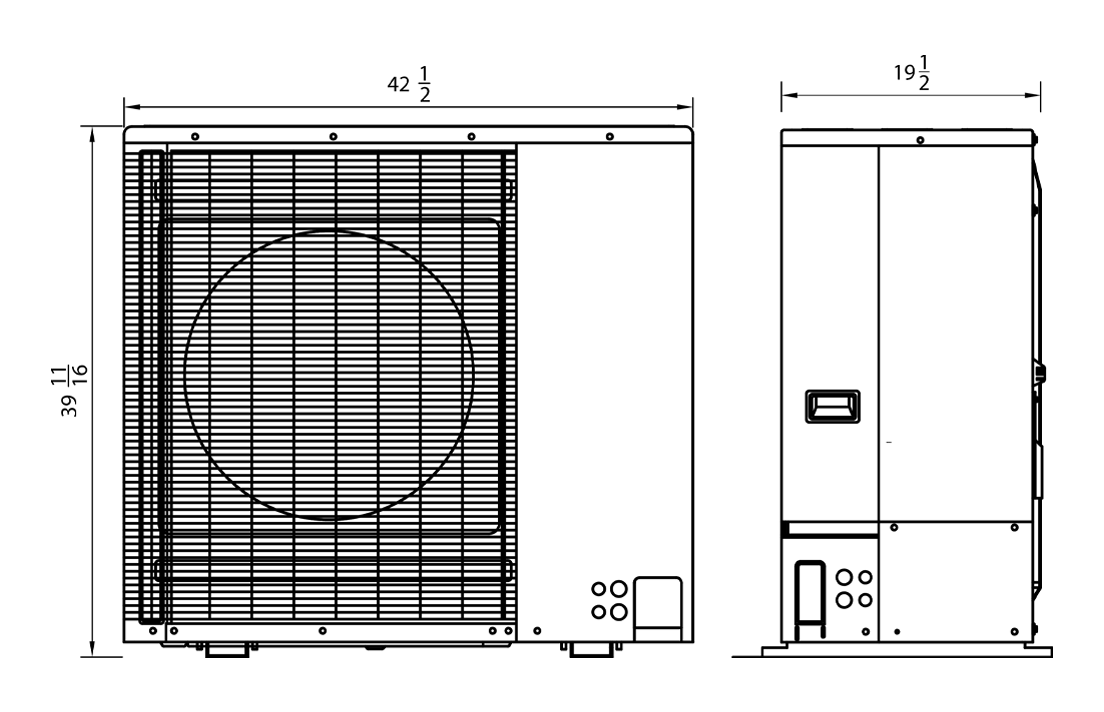

Dimensions
3 Ton, 4 Ton, & 5 Ton
