AIRSTAGE VRF Systems AIRSTAGE VU-7 Outdoor Units Technical Information

Features

Energy Efficient

Fujitsu AIRSTAGE commercial outdoor units deliver scalable, high-performance climate control for a wide range of building types. Designed for flexibility and efficiency, each unit supports multiple indoor units while maintaining consistent operation and reduced energy usage.

Compact Size

Designed with a space-saving footprint to support a wide range of installation applications while delivering dependable heating and cooling performance.

Year-Round Comfort

AIRSTAGE systems offer both heating and cooling to keep you comfortable year-round.

Built-in Base Pan Heater

Keeps condensate from freezing for superior cold-weather performance.

Specifications

  • Sound Level: As low as 57dB
  • IEER: Up to 25.25
  • EER: Up to 12.33
  • Cooling Operating Range: 14°F to 126°F (-10°C to 52°C)
  • Heating Operation Range: -15°F to 70°F (-26°C to 21°C)

Warranty

Come standard with a 2-Year Compressor/1-Year Parts warranty.

V-Series systems installed in a residential application must be commissioned to qualify for the 10-year parts and 10-year compressor warranty.
V-Series systems installed in a commercial application must also be commissioned and are eligible for a 10-year parts and 10-year compressor warranty.

Read more about our warranty statements
J-Series + V-Series Applications
When J-Series and V-Series systems are installed together at the same residential or commercial site, the installation must be commissioned. These combined applications are eligible for a 10-year parts and 10-year compressor warranty only.

Dimensions

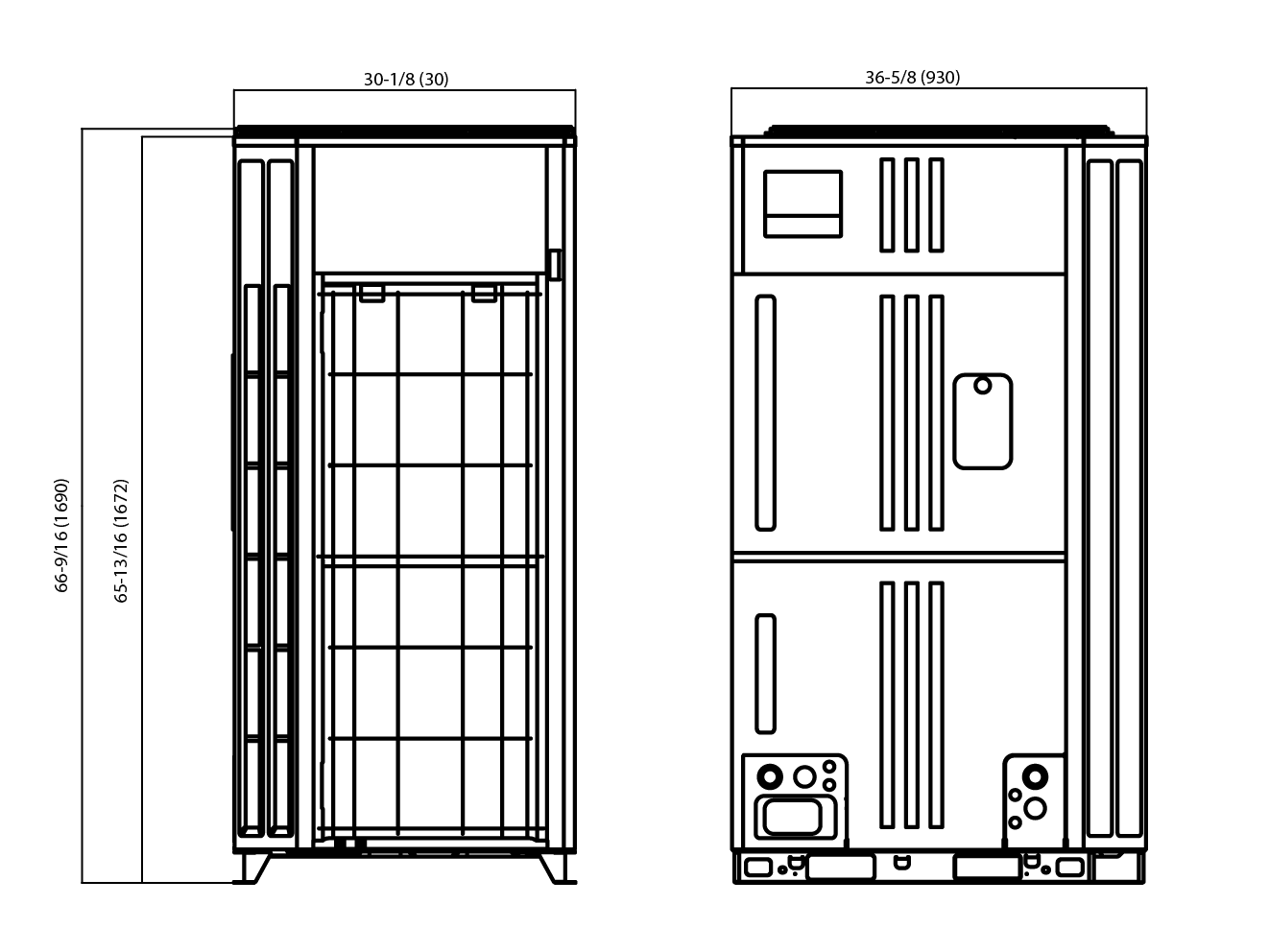

6 Ton & 8 Ton

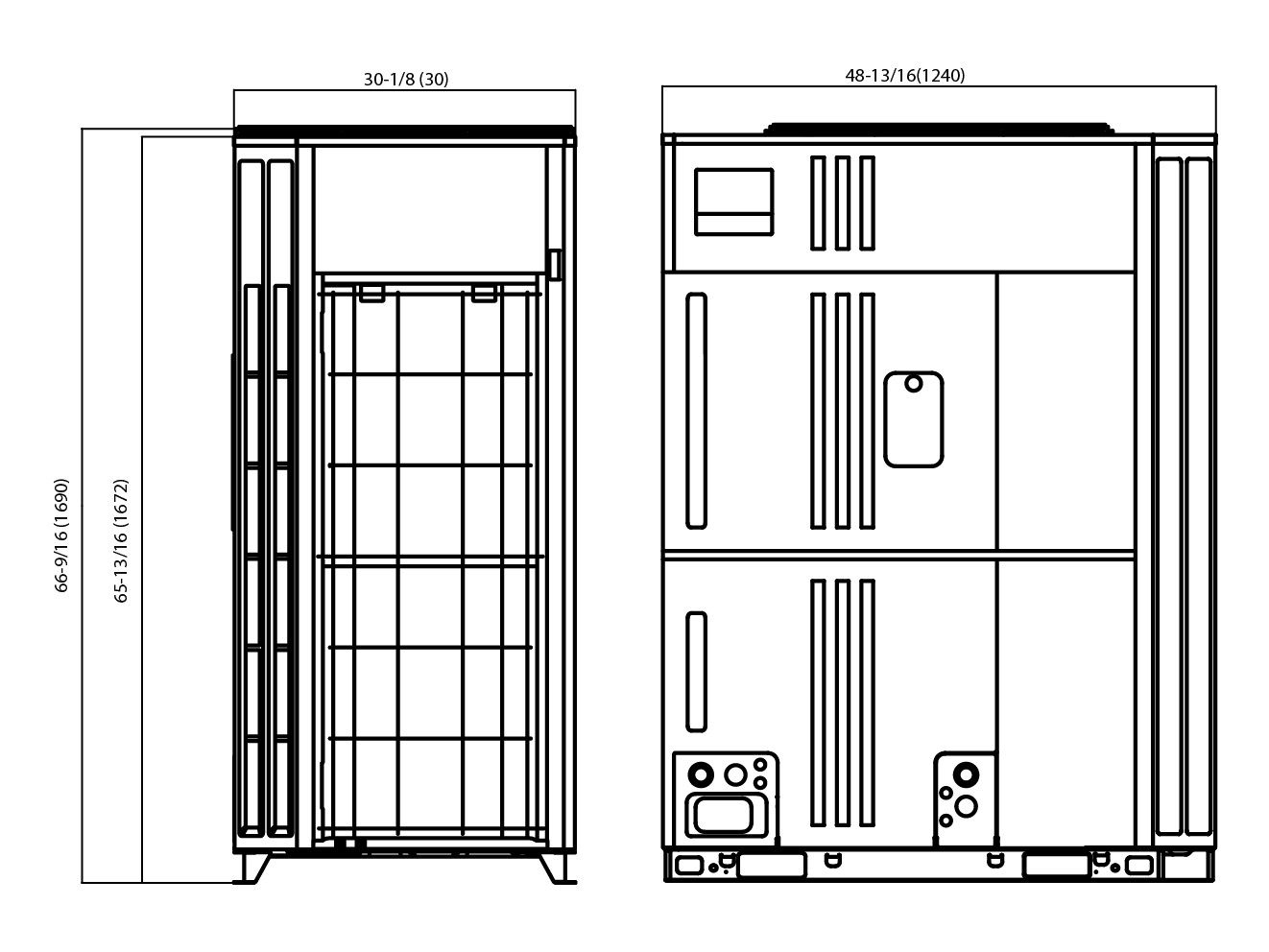

10 Ton

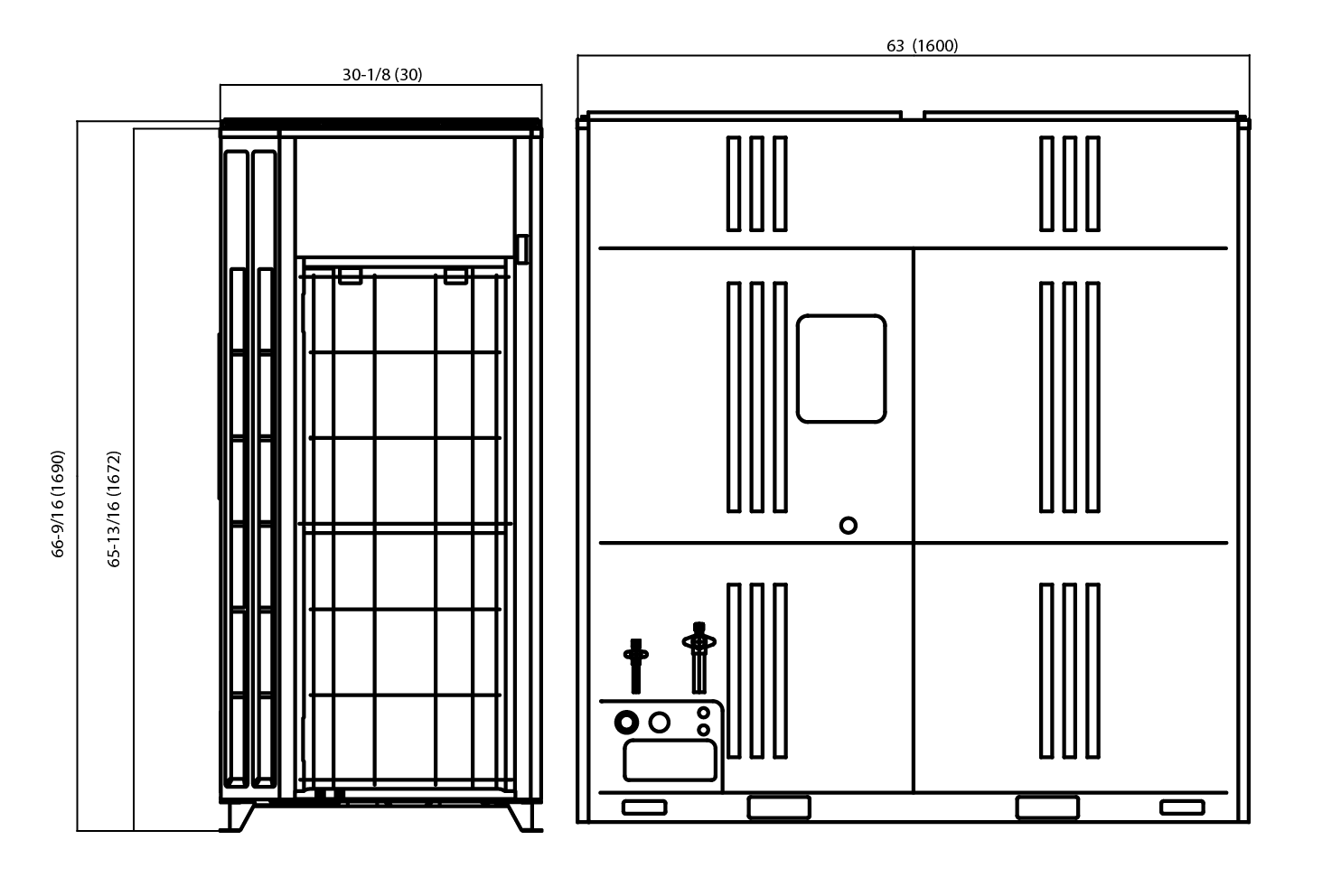

12 Ton, 14 Ton, & 16 Ton
