Perform the setting change or removal for Building

The setting change or removal can be performed for Building.

Start-up

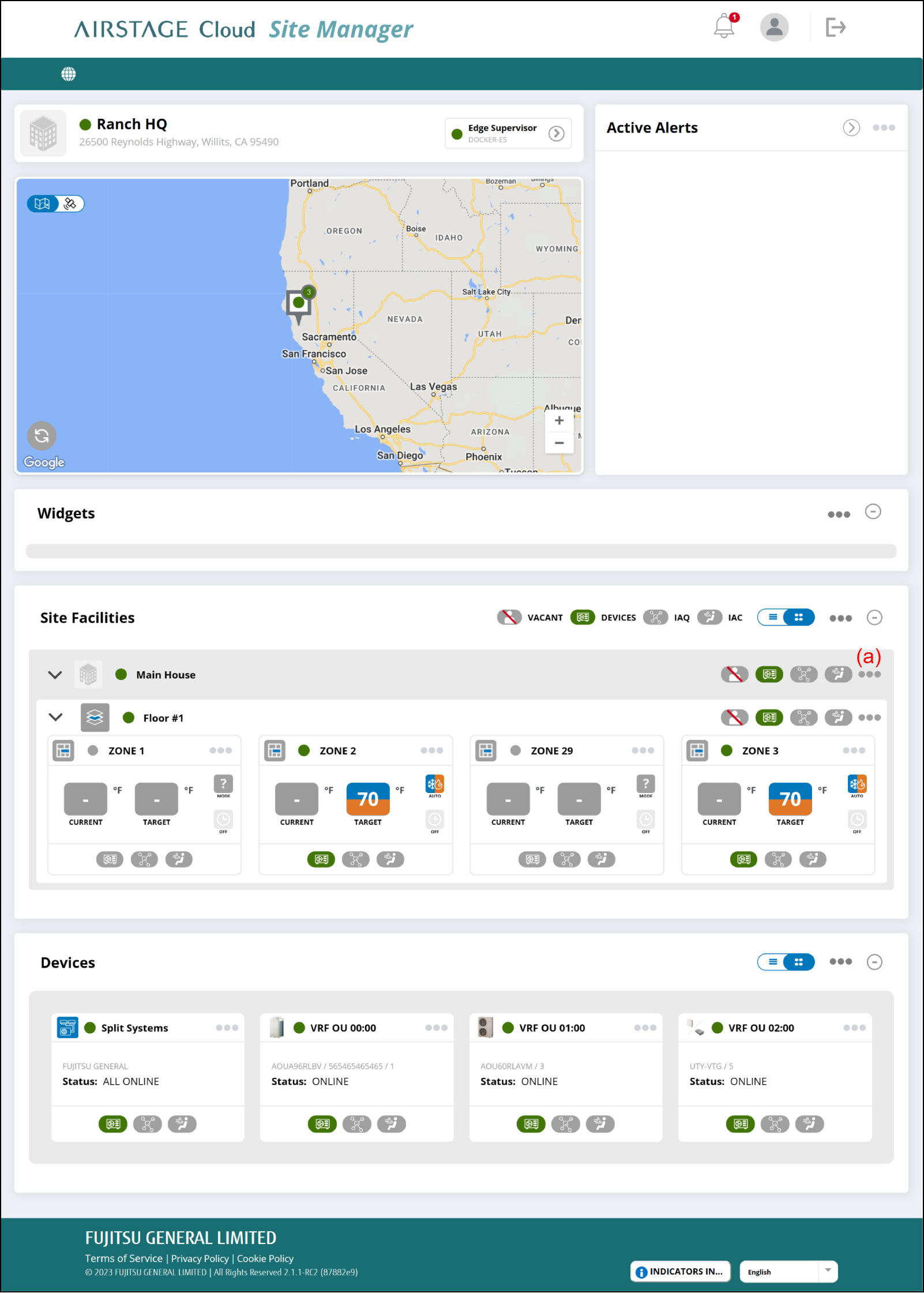

  1. Select [Building Settings] from link menu (a) on “Site Dashboard” screen.

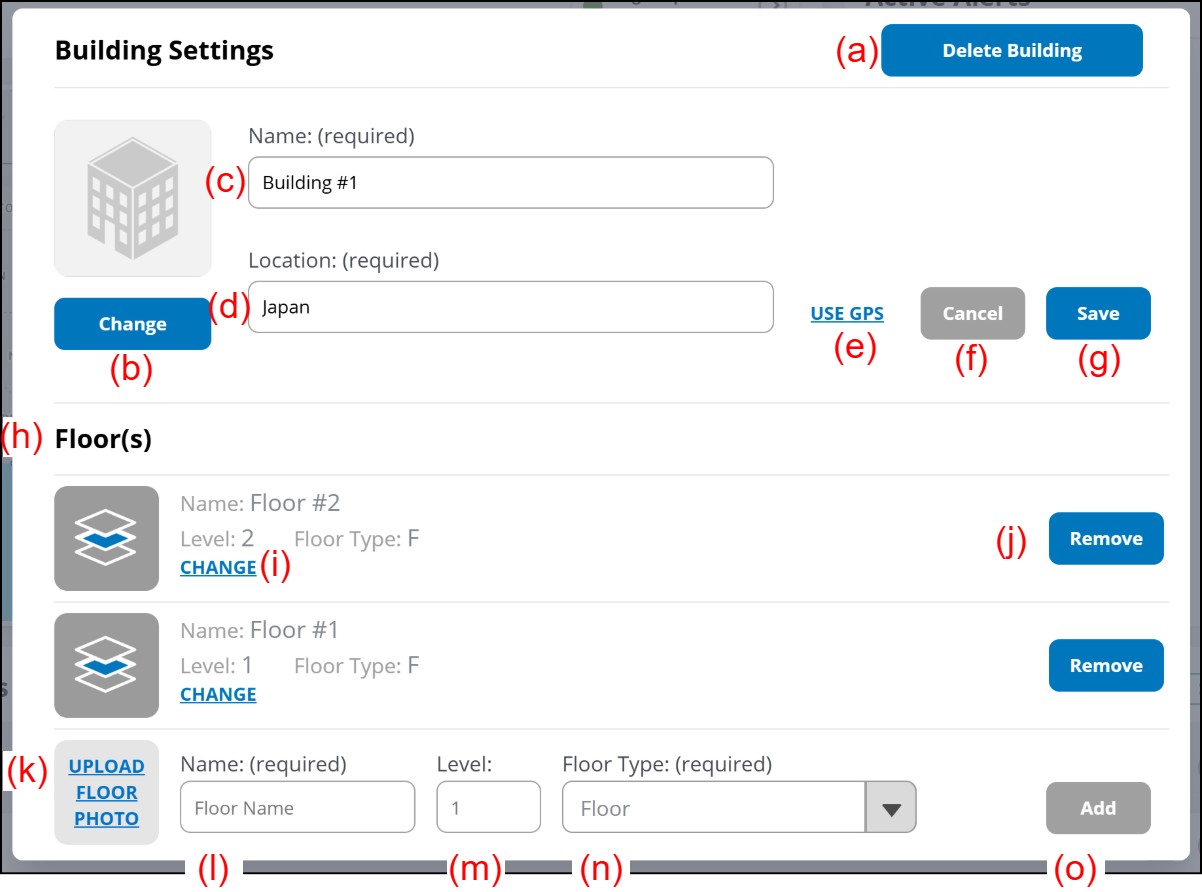

"Building Settings" window
  1. Enter the following page information.
  2. To complete the setting, select the button (g).
    The setting will be saved, and the window will close.

If you want to close the window without saving the changes, select the button (f).

(a) [DELETE BUILDING] button
    Deletes the Building information.

NOTE: When the Building is deleted, all the configurations in the Building are also deleted.

(b) [Change] button
    Changes the Building photo.

(c) Enter the Building name.

(d) Enter the Building location.

(e) [USE GPS] button
   To use GPS data on the web browser as Location, select the button.

(h) Floor information is displayed.

(i) [CHANGE] button
    Changes the Floor photo.

(j) [REMOVE] button
    Removes the Floor information.

(k) [UPLOAD FLOOR PHOTO] button
    Registers the Floor photo.

(l) Enter the Floor name.

(m) Set the Floor level.

(n) Select the Floor Type.

  • Floor: Usually select Floor.
  • Basement: It is displayed below Floor in the Floor Type in ascending order of Level.
  • Mezzanine: It is displayed above the Floor in the Floor Type of the same Level.
  • Roof: It is displayed above the Floor in the Floor Type of the same Level or above the Mezzanine.

(Example)

Floor Type Level
Floor 3
Roof 2
Mezzanine 2
Floor 2
Floor 1
Basement 1
Basement 2
Basement 3

(o) [ADD] button

    Adds the Floor information.
