Ventilator schedule setting

Schedule creation

Click the [EDIT SCHEDULE] button on the Configuration of ventilator.

Modal window of Edit Schedule appears.


Schedule type and operation

Schedules are available in two types: Weekly Schedule and Yearly Schedule.

When the Weekly Schedule is set, Schedule operates at the time of the day of the week that is set throughout the year.

If you want to limit the days on which the Schedule operates, set the Yearly Schedule.

When the Yearly Schedule is set, the Schedule of the day of the week set in the Weekly Schedule operates during the Yearly Schedule period.

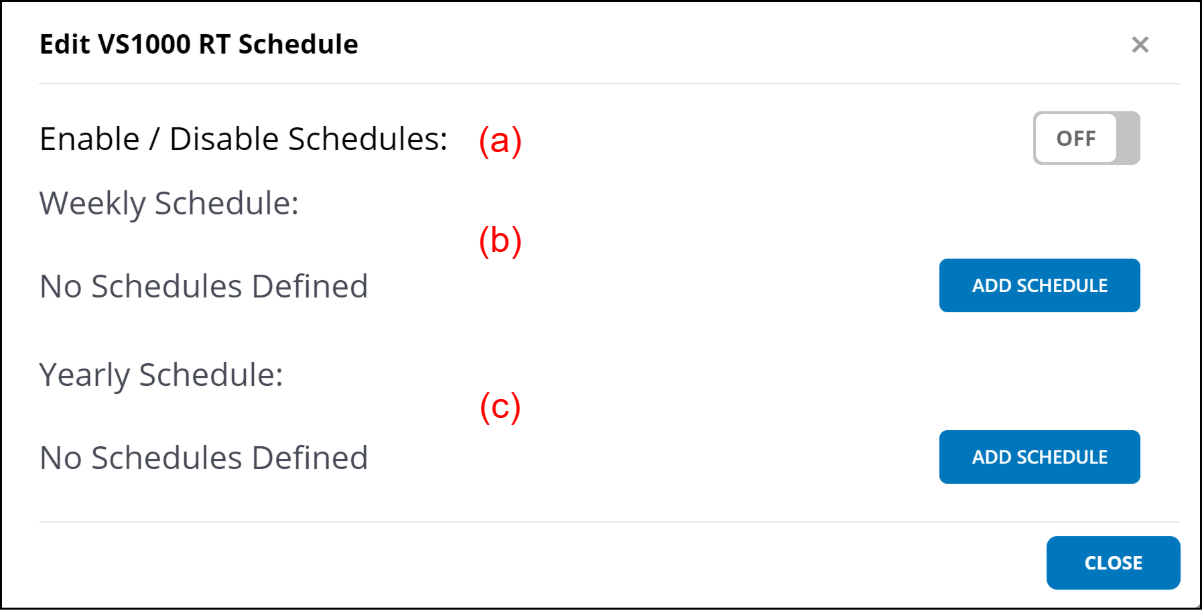

Edit Schedule

(a) Enable/Disable Schedule

Sets Enable/Disable for Schedule. “ON” can be set only when one or more Schedules are set.

(b)Weekly Schedule:

Displays the setting “Weekly Schedule”.

Click the [ADD SCHEDULE] button to move to the detail screen.

(c)Yearly Schedule:

Displays the setting “Yearly Schedule".

Click the [ADD SCHEDULE] button to move to the detail screen.

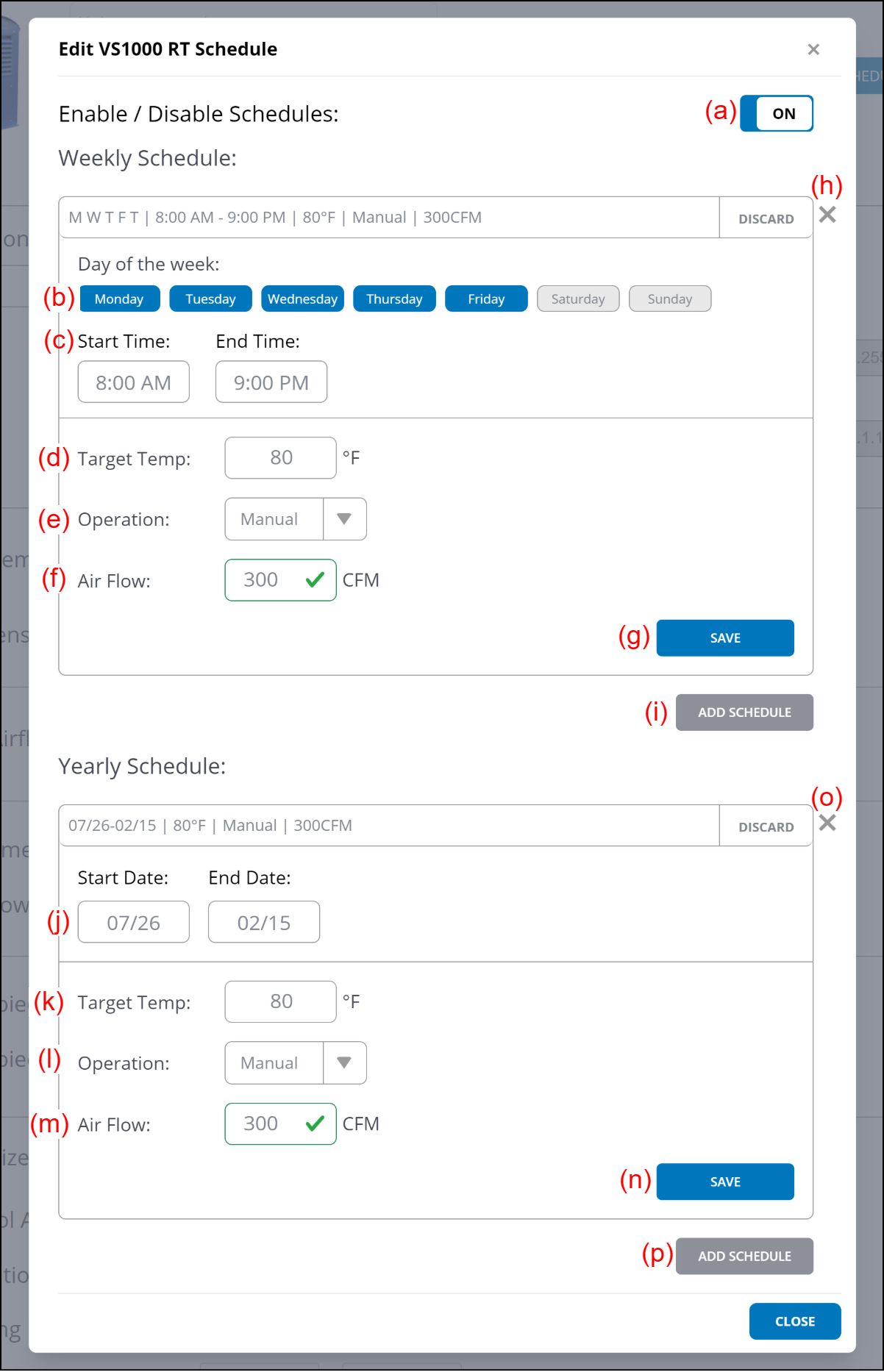

Edit Schedule Detail

(a) Enable/Disable Schedule

Sets Enable/Disable for Schedule. “ON” can be set only when one or more Schedules are set.


Weekly Schedule

(b) Day of the week

Sets the days of the week on which the ventilator operates. Select one or more days of the week.

(c) Start Time/End Time

Sets the time that the ventilator operates.

Set the time so that the End Time is later than the Start Time.

(d) Target Temp

Sets the target temperature.

Enter the temperature within the specified range.

This set value is shared with the Yearly Schedule.

(e) Operation

Sets the operation mode.

Auto / Manual can be selected.

This set value is shared with the Yearly Schedule.

(f) Air Flow

Sets the target airflow.

Enter the airflow within the specified range.

This set value is shared with the Yearly Schedule.

(g) [Save] button

Saves the entered settings of Weekly Schedule.

(h) [×] button

Deletes the setting Weekly Schedule.

(i)  [ADD SCHEDULE] button

Adds the Weekly Schedule.


Yearly Schedule

(j) Start Date/End Date

Sets the period for which the Schedule will operate.

(k) Target Temp

Sets the target temperature.

Enter the temperature within the specified range.

This set value is shared with the Weekly Schedule.

(l) Operation

Sets the operation mode.

Auto / Manual can be selected.

This set value is shared with the Weekly Schedule.

(m) Air Flow

Sets the target airflow.

Enter the airflow within the specified range.

This set value is shared with the Weekly Schedule.

(n) [SAVE] button

Saves the entered settings of Yearly Schedule.

(o) [×] button

Deletes the setting Yearly Schedule.

(p) [ADD SCHEDULE] button

Adds the Yearly Schedule.
