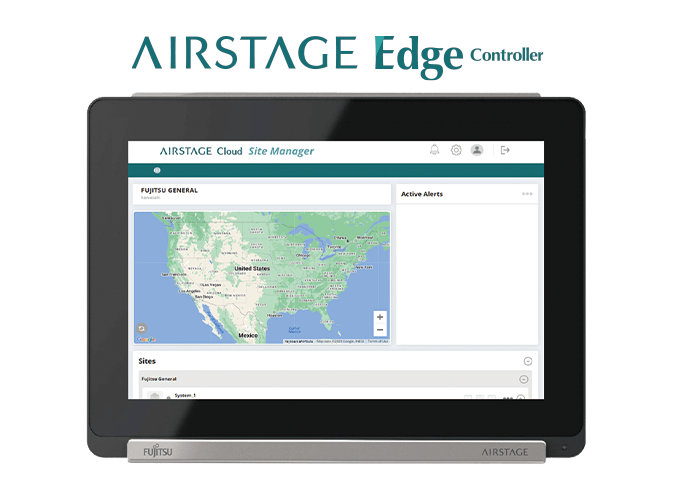

AIRSTAGE Edge Controller UTY-DSGYZ2

AIRSTAGE Edge Controller

Max. number of controllable units :
128 indoor units
Max. number of controllable zone :
128 zone
Download :
Catalogs

Features

  • Stylish look
  • 10.1 inch TFT color wide screen
  • Visually intuitive operation

Specification

Model Name UTY-DSGYZ2
Power Supply Phase 1φ
Voltage 100 ~ 240VAC V
Frequency 50/60 Hz
Net Dimensions Height 195 mm
Width 261 mm
Depth 63 mm
Net Weight 1,900 g
Communication LAN 10BASE-T / 100BASE-TX RJ45 x 2ch
Wireless LAN IEEE802.11 b/g/n 2.4GHz
Others LONWORKS x 1ch
External Input 2ch (Dry contact or Apply voltage)
Monitor 10.1 inch TFT LED-backlit LCD 1280 x 800 pixels 24bit color
Touch panel Capacitive touch panel
LED x 1 (Power indication)
Switch x 1 (Shut down/Menu )
Buzzer Piezo buzzer (3 levels of volume)
