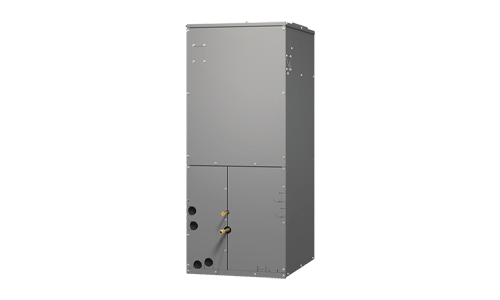

Halcyon™ SINGLE-ROOM MINI-SPLIT SYSTEMS Multi Position Air Handling Unit

Indoor Unit Systems: AMUG24LMAS, AMUG30LMAS, AMUG36LMAS, AMUG48LMAS

Model

Cooling24,000 BTU/h
Heating27,000 BTU/h
AMUG24LMAS
Cooling30,000 BTU/h
Heating32,000 BTU/h
AMUG30LMAS
Cooling36,000 BTU/h
Heating42,000 BTU/h
AMUG36LMAS
Cooling45,600 BTU/h
Heating53,000 BTU/h
AMUG48LMAS

Features

Fujitsu is thrilled to present yet another product innovation designed to complement a progressive market. Leveraging our cutting edge inverter technology, Fujitsu’s new system combines our revolutionary side discharge outdoor units with a modular design indoor unit. The result: high efficiency, space saving, and quiet single-zone systems with no compromise.

Indoor Unit Features

  • All-aluminum indoor unit coil
  • High static pressure, up to 1.0 inWG
  • Indoor sound levels as low as 25 dBA
  • Adaptive fan motor control - Optimum indoor comfort
  • Minimum clearance on three sides only 21in. clearance on the front for service.
  • Downflow and Horizontal Right kits provided with each AHU at no additional cost
  • Factory provided and field installed electric heat kit - Up to 15.5kW
  • External Input/Output Interface - Interlock with 3rd party systems. (Optional)

Outdoor Unit Features

  • Fully communicating heat pump with conventional multiposition air handler. Ideal solution for installations with limited space
  • Variable speed inverter-driven compressor for optimum system operation and comfort
  • Outdoor sound levels as low as 53 dBA
  • High efficiency DC motor
  • Single fan outdoor unit - Save space without compromise

System Features

  • True Multi-Position Design - up flow, down flow, & horizontal
  • High Energy Saving - Inverter driven heat pump, high efficiency ECM motor, and all-aluminum indoor unit coil.

Smart Device Control (optional)

Wireless LAN compatible systems can be controlled from anywhere using the FGLair app on a mobile device, or smart home devices such as Amazon Echo or Google Home. (FGlair app is available for download on the Apple App store and Google Play Store.)
