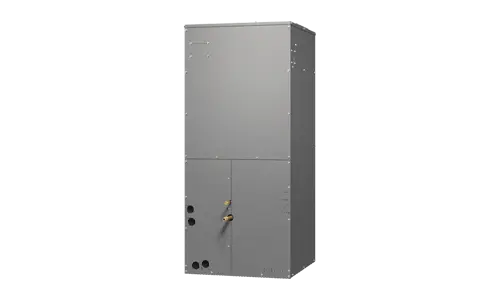

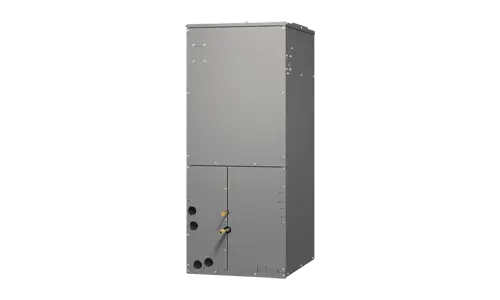

AIRSTAGE SINGLE ROOM MINI-SPLIT SYSTEM Multi Position Air Handler Unit

  • Economy Mode
  • Minimum Heat Mode
  • Auto Changeover
  • Automatic air flow adjustment
  • Auto Restart/Reset
  • Dry Mode
  • Fresh Air Intake
  • Outdoor Unit Low Noise
  • Quiet Mode (Indoor Unit)
  • 24 Hour Timer
  • Sleep Timer
  • Weekly Timer
  • Cold Prevention
  • pump Down Operation
  • Remote Temperature Sensor
  • Third Party Device Control
  • 0-Degree Ambient Cooling
  • Low Ambient Cooling
  • Base Pan Heater
  • Blue Fin Heat Exchanger
  • Daisy Chain
  • Long Piping Length
KUAS1M & KUAH1M
XLTH R32

The AIRSTAGE Centauri & Centauri XLTH Multi-Position Air Handling Units deliver a high-efficiency, central ducted solution, optimized for flexible installation and powerful whole-space comfort. When matched with Extra Low Temperature Heating Outdoor Units, these systems provide dependable heating performance in cold climates, making them ideal for both new construction and retrofit applications. Engineered to maximize efficiency without sacrificing space, they offer reliable year-round comfort—even in challenging outdoor conditions.

Size (kBTU/h): 12, 18, 24, 30, 36, 42, 48

Features

Ducted Technology

Effortless installation meets exceptional performance—AIRSTAGE ducted mini-splits bring you the sleek efficiency and whisper-quiet comfort of a mini-split, seamlessly integrated into any space.

Year-Round Comfort

AIRSTAGE systems offer both heating and cooling to keep you comfortable year-round.

Energy Efficient

Save up to 33% on energy bills with AIRSTAGE H-Series systems. Take advantage of local rebates and save even more.

No Temperature Lockout! (XLTH Only)

Heating down to -15°F (-26°C) without sacrificing heating capacity at low outdoor temperatures

Specifications

  • Sound Level: As low as 23dB
  • SEER2: Up to 19.9 BTU/hW
  • HSPF2: Up to 10.5 BTU/hW
  • Energy Star: Yes
  • Cooling Operating Range:
    -5°F to 122°F (-21°C to 50°C)
  • Heating Operation Range:
    -15°F to 75°F (-26°C to 24°C) XLTH
    -5°F to 75°F (-21°C to 24°C) Standard

Warranty

7 Year Compressor, 5 Year Parts out-of-the-box Warranty.

10 Year Compressor, 10 Year Parts Warranty when registered within 60 days of installation in a residence.

12 Year Compressor, 12 Year Parts Warranty when registered within 60 days of installation in a residence and installed by a Fujitsu Elite contractor.

Read more about our warranty statements

Dimensions

12,000 BTU/h, 18,000 BTU/h, & 24,000 BTU/h

30,000 BTU/h, 36,000 BTU/h, & 48,000 BTU/h

Optional Accessories

KAGAMI
Touch Panel Wired Controller
(UTY-RVRU)

IR Receiver Kit
w/ Wireless Remote Controller
(UTY-LBTUM)

Wi-Fi Adapter
(WiFi Interface Module USB Type)

Intesis IR Wireless AC
Cloud Control Interface (Intesis Home app)

*
