AIRSTAGE MULTI-ROOM MINI-SPLIT SYSTEMS Specifications of Indoor Units

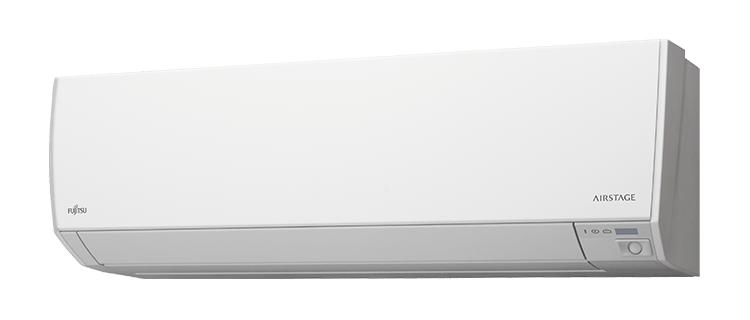

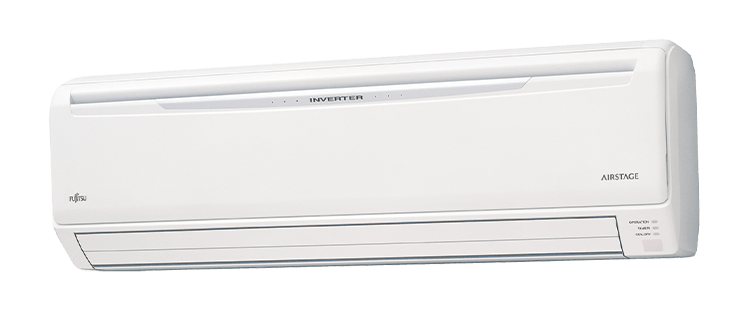

Wall Mounted ASUH07/09/12/15/18/24LPAS
| Model No. | ASUH07LPAS | ASUH09LPAS | ASUH12LPAS | ASUH15LPAS | ASUH18LPAS | ASUH24LPAS | |
|---|---|---|---|---|---|---|---|
|
Rated
Cooling |
BTU/h | 7,000 | 9,000 | 12,000 | 14,000 | 18,000 | 24,000 |
|
Rated
Heating |
BTU/h | 7,500 | 9,600 | 12,800 | 16,000 | 19,200 | 25,600 |
|
Air Circulation:
Hi Cooling |
CFM
(m³/h) |
383
(650) |
412
(700) |
412
(700) |
453
(770) |
530
(900) |
642
(1,090) |
|
Medium
Cooling |
CFM
(m³/h) |
318
(540) |
330
(560) |
330
(560) |
353
(600) |
471
(800) |
530
(900) |
|
Low
Cooling |
CFM
(m³/h) |
253
(430) |
253
(430) |
253
(430) |
265
(450) |
377
(640) |
471
(800) |
|
Quiet
Cooling |
CFM
(m³/h) |
188
(320) |
188
(320) |
182
(310) |
182
(310) |
241
(410) |
306
(520) |
| Fan Speed Stages | - | 4+Auto | 4+Auto | 4+Auto | 4+Auto | 4+Auto | 4+Auto |
|
Sound Level:
Hi (Cooling/Heating) |
dB(A) | 38/41 | 40/42 | 40/42 | 43/44 | 44/43 | 49/47 |
|
Medium
(Cooling/Heating) |
dB(A) | 33/35 | 34/36 | 35/38 | 36/39 | 42/39 | 44/43 |
|
Low
(Cooling/Heating) |
dB(A) | 29/31 | 29/31 | 30/33 | 30/33 | 37/34 | 42/37 |
|
Quiet
(Cooling / Heating) |
dB(A) | 21/22 | 21/22 | 21/22 | 21/24 | 26/28 | 31/32 |
| Voltage | V | 208/230 | 208/230 | 208/230 | 208/230 | 208/230 | 208/230 |
| Frequency | Hz | 60 | 60 | 60 | 60 | 60 | 60 |
| Phase | - | Single | Single | Single | Single | Single | Single |
|
Current:
Rated/Max Cooling |
Amps | 0.18/ 0.23 | 0.20/ 0.25 | 0.24/ 0.30 | 0.35/ 0.44 | 0.32/ 0.40 | 0.46/ 0.58 |
|
Current:
Rated/Max Heating |
Amps | 0.18/ 0.23 | 0.20/ 0.25 | 0.24/ 0.30 | 0.35/ 0.44 | 0.32/ 0.40 | 0.46/ 0.58 |
| Input Power | W | 18 | 22 | 26 | 42 | 34 | 55 |
| Net Weight |
lbs.
(kg) |
21
(9.5) |
21
(9.5) |
22
(10.0) |
22
(10.0) |
29
(13) |
29
(13) |
|
Dimensions:
Height |
Inch
(mm) |
10-5/8
(270) |
10-5/8
(270) |
10-5/8
(270) |
10-5/8
(270) |
11
(280) |
11
(280) |
| Width |
Inch
(mm) |
32-13/16
(834) |
32-13/16
(834) |
32-13/16
(834) |
32-13/16
(834) |
38-9/16
(980) |
38-9/16
(980) |
| Depth |
Inch
(mm) |
8-3/4
(222) |
8-3/4
(222) |
8-3/4
(222) |
8-3/4
(222) |
9-7/16
(240) |
9-7/16
(240) |
| Refrigerant | - | R410A | R410A | R410A | R410A | R410A | R410A |
|
Air Direction:
Horizontal |
- | Manual | Manual | Manual | Manual | Manual | Manual |
| Vertical | - | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic |
| Air Filter Type | - | Washable | Washable | Washable | Washable | Washable | Washable |
| Ion Deodorizing Filter | - | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable |
| Apple-Catechin Filter | - | Disposable | Disposable | Disposable | Disposable | Disposable | Disposable |
|
Lineset Size:
Gas |
Inch | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 5/8* |
| Liq. | Inch | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 |
- *
- Use the attached adapter to change the pipe size from Ø1/2 in (Ø12.7 mm) to Ø5/8 in (Ø15.88 mm)

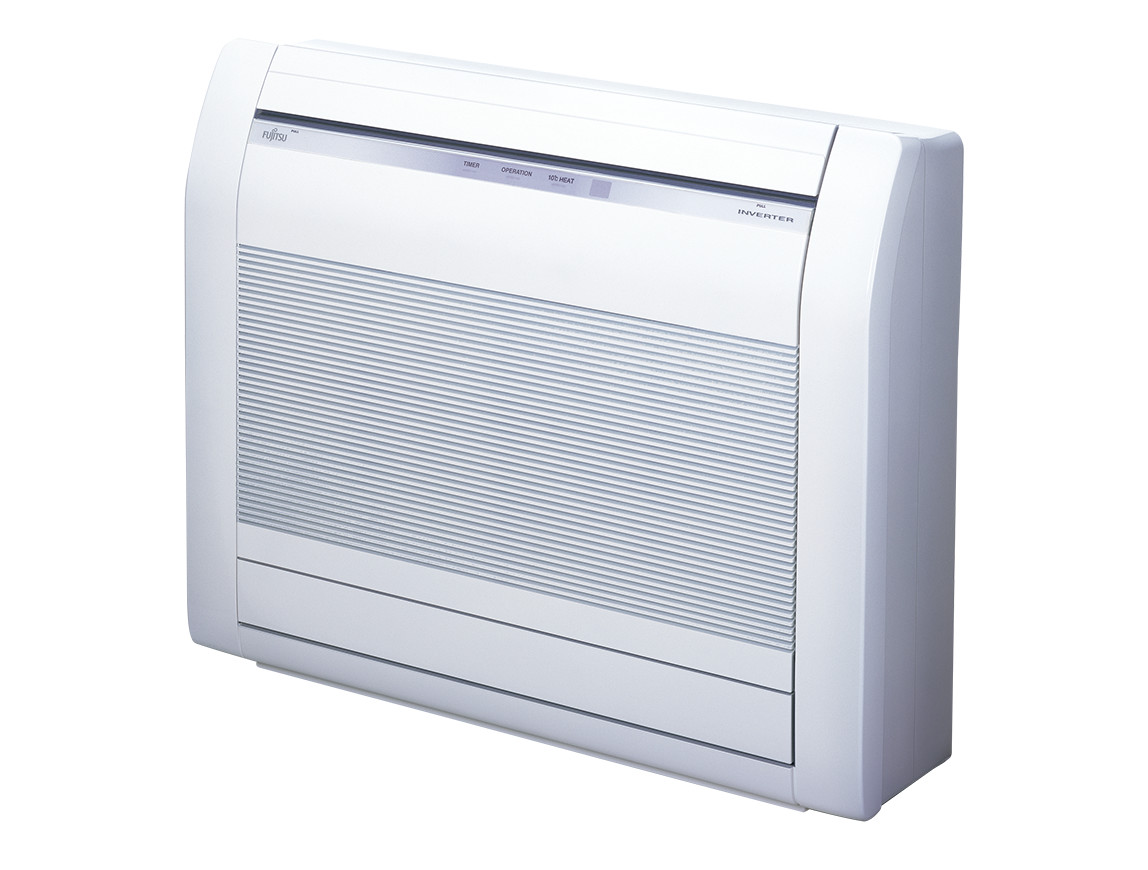

Floor Mount AGU9/12/15RLF
| Model No. | AGU9RLF | AGU12RLF | AGU15RLF | |
|---|---|---|---|---|
|
Rated
Cooling |
BTU/h | 9,000 | 12,000 | 14,000 |
|
Rated
Heating |
BTU/h | 9,600 | 12,800 | 16,000 |
|
Air Circulation:
Hi Cooling |
CFM
(m³/h) |
312
(530) |
353
(600) |
383
(650) |
|
Medium
Cooling |
CFM
(m³/h) |
259
(440) |
288
(490) |
306
(520) |
|
Low
Cooling |
CFM
(m³/h) |
212
(360) |
224
(380) |
235
(400) |
|
Quiet
Cooling |
CFM
(m³/h) |
159
(270) |
159
(270) |
159
(270) |
| Fan Speed Stages | - | 4+Auto | 4+Auto | 4+Auto |
|
Sound Level:
Hi (Cooling/Heating) |
dB(A) | 39/39 | 42/42 | 44/44 |
|
Medium
(Cooling/Heating) |
dB(A) | 34/35 | 36/38 | 38/39 |
|
Low
(Cooling/Heating) |
dB(A) | 28/30 | 30/32 | 31/33 |
|
Quiet
(Cooling / Heating) |
dB(A) | 22/22 | 22/22 | 22/22 |
| Voltage | V | 208/230 | 208/230 | 208/230 |
| Frequency | Hz | 60 | 60 | 60 |
| Phase | - | Single | Single | Single |
|
Current:
Rated/Max Cooling |
Amps | 0.15/0.33 | 0.18/0.33 | 0.20/0.38 |
|
Current:
Rated/Max Heating |
Amps | 0.15/0.33 | 0.18/0.33 | 0.20/0.38 |
| Input Power | W | 16 | 20 | 23 |
| Net Weight |
lbs.
(kg) |
31
(14) |
31
(14) |
31
(14) |
|
Dimensions:
Height |
Inch
(mm) |
23-5/8
(600) |
23-5/8
(600) |
23-5/8
(600) |
| Width |
Inch
(mm) |
29-1/8
(740) |
29-1/8
(740) |
29-1/8
(740) |
| Depth |
Inch
(mm) |
7-7/8
(200) |
7-7/8
(200) |
7-7/8
(200) |
| Refrigerant | - | R410A | R410A | R410A |
|
Air Direction:
Horizontal |
- | Manual | Manual | Manual |
| Vertical | - | Automatic | Automatic | Automatic |
| Air Filter Type | - | Washable | Washable | Washable |
| Ion Deodorizing Filter | - | Yes | Yes | Yes |
| Apple-Catechin Filter | - | Yes | Yes | Yes |
|
Lineset Size:
Gas |
Inch | 3/8 | 3/8 | 3/8 |
| Liq. | Inch | 1/4 | 1/4 | 1/4 |

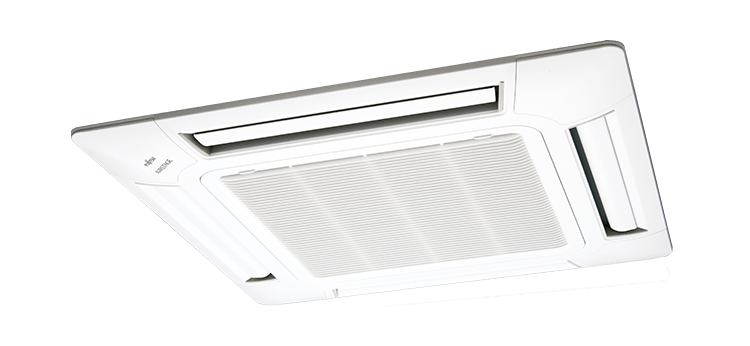

Compact Cassettes ACUH07/09/12/18LUAS1
| Model No. | ACUH07LUAS1 | ACUH09LUAS1 | ACUH12LUAS1 | ACUH18LUAS1 | |
|---|---|---|---|---|---|
|
Rated
Cooling |
BTU/h | 7,000 | 9,000 | 12,000 | 18,000 |
|
Rated
Heating |
BTU/h | 7,500 | 9,600 | 12,800 | 19,200 |
|
Air Circulation:
Hi Cooling |
CFM
(m³/h) |
318
(540) |
318
(540) |
359
(610) |
441
(750) |
|
Medium
Cooling |
CFM
(m³/h) |
288
(490) |
288
(490) |
312
(530) |
359
(610) |
|
Low
Cooling |
CFM
(m³/h) |
259
(440) |
259
(440) |
277
(470) |
306
(520) |
|
Quiet
Cooling |
CFM
(m³/h) |
230
(390) |
230
(390) |
241
(410) |
241
(410) |
| Fan Speed Stages | - | 4+Auto | 4+Auto | 4+Auto | 4+Auto |
|
Sound Level:
Hi (Cooling/Heating) |
dB(A) | 33/34 | 33/34 | 37/37 | 42/44 |
|
Medium
(Cooling/Heating) |
dB(A) | 31/32 | 31/32 | 33/33 | 37/40 |
|
Low
(Cooling/Heating) |
dB(A) | 29/29 | 29/29 | 31/31 | 33/37 |
|
Quiet
(Cooling / Heating) |
dB(A) | 27/27 | 27/27 | 28/28 | 28/28 |
| Voltage | V | 208/230 | 208/230 | 208/230 | 208/230 |
| Frequency | Hz | 60 | 60 | 60 | 60 |
| Phase | - | Single | Single | Single | Single |
|
Current:
Rated/Max Cooling |
Amps | 0.15/0.19 | 0.15/0.19 | 0.19/0.24 | 0.30/0.38 |
|
Current:
Rated/Max Heating |
Amps | 0.15/0.19 | 0.15/0.19 | 0.19/0.24 | 0.30/0.38 |
| Input Power | W | 18 | 18 | 23 | 39 |
| Net Weight |
lbs.
(kg) |
33
(15) |
33
(15) |
33
(15) |
33
(15) |
|
Dimensions:
Height |
Inch
(mm) |
9-5/8
(245) |
9-5/8
(245) |
9-5/8
(245) |
9-5/8
(245) |
| Width |
Inch
(mm) |
22-7/16
(570) |
22-7/16
(570) |
22-7/16
(570) |
22-7/16
(570) |
| Depth |
Inch
(mm) |
22-7/16
(570) |
22-7/16
(570) |
22-7/16
(570) |
22-7/16
(570) |
| Refrigerant | - | R410A | R410A | R410A | R410A |
|
Air Direction:
Vertical |
- | Automatic | Automatic | Automatic | Automatic |
| Air Filter Type | - | Washable | Washable | Washable | Washable |
| Front Grille | - | UTG-CCGFGA | UTG-CCGFGA | UTG-CCGFGA | UTG-CCGFGA |
|
Grille Dimensions:
Height |
Inch
(mm) |
1-15/16
(49) |
1-15/16
(49) |
1-15/16
(49) |
1-15/16
(49) |
| Width |
Inch
(mm) |
24-7/16
(620) |
24-7/16
(620) |
24-7/16
(620) |
24-7/16
(620) |
| Depth |
Inch
(mm) |
24-7/16
(620) |
24-7/16
(620) |
24-7/16
(620) |
24-7/16
(620) |
|
Lineset Size:
Gas |
Inch | 3/8 | 3/8 | 3/8 | 1/2 |
| Liq. | Inch | 1/4 | 1/4 | 1/4 | 1/4 |
Slim Duct ADUH07/09/12/18/24LUAS1
| Model No. | ADUH07LUAS1 | ADUH09LUAS1 | ADUH12LUAS1 | ADUH18LUAS1 | ADUH24LUAS1 | |
|---|---|---|---|---|---|---|
|
Rated
Cooling |
BTU/h | 7,000 | 9,000 | 12,000 | 18,000 | 24,000 |
|
Rated
Heating |
BTU/h | 7,500 | 9,600 | 12,800 | 19,200 | 25,600 |
|
Air Circulation:
Hi Cooling |
CFM
(m³/h) |
324
(550) |
353
(600) |
382
(650) |
553
(940) |
783
(1330) |
|
Medium
Cooling |
CFM
(m³/h) |
288
(490) |
324
(550) |
353
(600) |
518
(880) |
730
(1240) |
|
Low
Cooling |
CFM
(m³/h) |
288
(490) |
324
(550) |
353
(600) |
518
(880) |
730
(1240) |
|
Quiet
Cooling |
CFM
(m³/h) |
259
(440) |
265
(450) |
283
(480) |
441
(750) |
606
(1030) |
| Fan Speed Stages | - | 4+Auto | 4+Auto | 4+Auto | 4+Auto | 4+Auto |
|
Sound Level:
Hi (Cooling/Heating) |
dB(A) | 28/28 | 28/28 | 29/29 | 32/33 | 33/35 |
|
Medium
(Cooling/Heating) |
dB(A) | 26/26 | 27/26 | 28/28 | 31/32 | 32/34 |
|
Low
(Cooling/Heating) |
dB(A) | 25/25 | 26/25 | 27/27 | 30/31 | 30/32 |
|
Quiet
(Cooling / Heating) |
dB(A) | 24/24 | 25/24 | 26/24 | 29/29 | 29/29 |
| Voltage | V | 208/230 | 208/230 | 208/230 | 208/230 | 208/230 |
| Frequency | Hz | 60 | 60 | 60 | 60 | 60 |
| Phase | - | Single | Single | Single | Single | Single |
| Static Pressure | W.C | 0 to 0.36 | 0 to 0.36 | 0 to 0.36 | 0 to 0.36 | 0 to 0.20 |
|
Current:
Rated/Max Cooling |
Amps | 0.30/0.38 | 0.30/0.38 | 0.35/0.44 | 0.44/0.55 | 0.66/0.83 |
|
Current:
Rated/Max Heating |
Amps | 0.30/0.38 | 0.30/0.38 | 0.35/0.44 | 0.44/0.55 | 0.66/0.83 |
| Input Power | W | 33 | 49 | 58 | 73 | 111 |
| Net Weight |
lbs.
(kg) |
35
(16) |
37
(17) |
37
(17) |
44
(20) |
53
(24) |
|
Dimensions:
Height |
Inch
(mm) |
7-13/16
(198) |
7-13/16
(198) |
7-13/16
(198) |
7-13/16
(198) |
7-13/16
(198) |
| Width |
Inch
(mm) |
27-9/16
(700) |
27-9/16
(700) |
27-9/16
(700) |
35-7/16
(900) |
43-5/16
(1100) |
| Depth |
Inch
(mm) |
24-7/16
(620) |
24-7/16
(620) |
24-7/16
(620) |
24-7/16
(620) |
24-7/16
(620) |
|
Supply Duct Flange Dimensions:
Height |
Inch
(mm) |
5-15/16
(151) |
5-15/16
(151) |
5-15/16
(151) |
5-15/16
(151) |
5-15/16
(151) |
| Width |
Inch
(mm) |
25-9/16
(650) |
25-9/16
(650) |
25-9/16
(650) |
33-7/16
(850) |
41-11/32
(1050) |
| Depth |
Inch
(mm) |
3/4
(19) |
3/4
(19) |
3/4
(19) |
3/4
(19) |
3/4
(19) |
|
Return Duct Dimensions:
Height |
Inch
(mm) |
6-7/8
(175) |
6-7/8
(175) |
6-7/8
(175) |
6-7/8
(175) |
6-7/8
(175) |
| Width |
Inch
(mm) |
22-5/8
(575) |
22-5/8
(575) |
22-5/8
(575) |
30-1/2
(775) |
37-3/4
(959) |
| Depth |
Inch
(mm) |
3/4 Flat
(19 Flat) |
3/4 Flat
(19 Flat) |
3/4 Flat
(19 Flat) |
3/4 Flat
(19 Flat) |
3/4 Flat
(19 Flat) |
| Refrigerant | - | R410A | R410A | R410A | R410A | R410A |
| Air Filter Type | - | Washable | Washable | Washable | Washable | Washable |
|
Lineset Size:
Gas |
Inch | 3/8 | 3/8 | 3/8 | 1/2 | 5/8 |
| Liq. | Inch | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 |
