Wired Remote Controller Wired Remote Controller Wired Remote Controller

1:03

Model name : UTY-RVRU

FEATURES

Concept

A remote controller that provides the functions you need in a sleek design that uniquely transforms itself to blend with any interior.

When not in use, it’s a part of the interior design.

When in use, it’s a simple, intuitive remote controller.

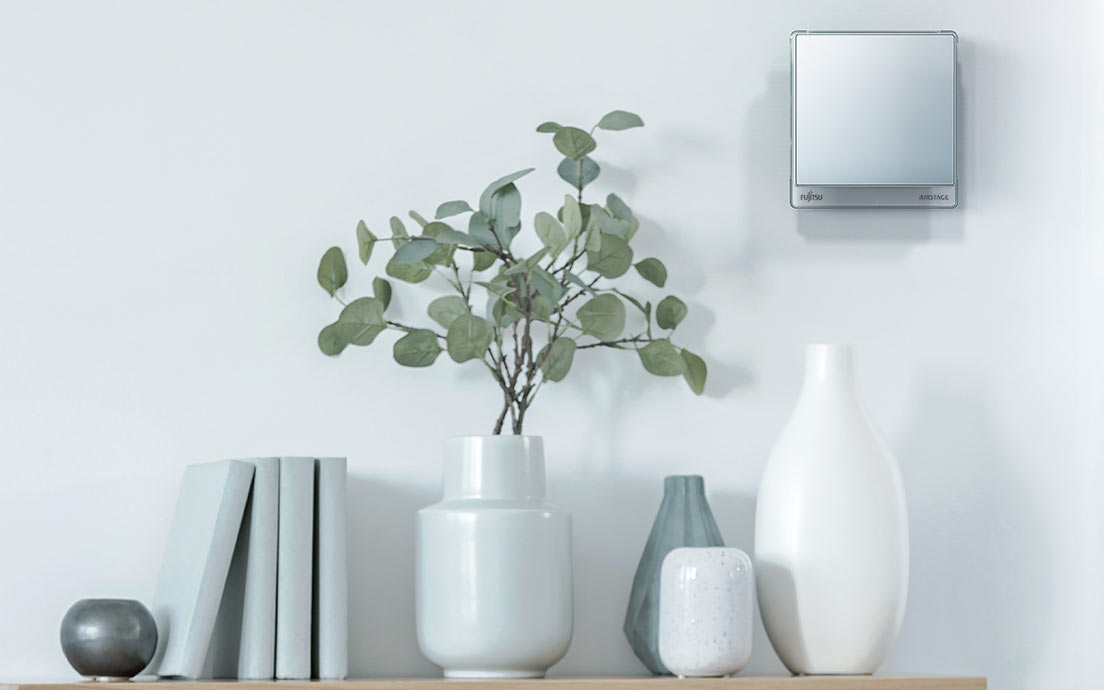

Only during times of operation is display information visible. The rest of the time, KAGAMI subtly appears as a mirror on your wall.

Harmonizes with the Installation Space

The design goal was to create a controller that is considered interior décor. This was achieved through the use of mirrors, glass, and layered elements that produce a frosted clear panel that appears to float. The end result, KAGAMI, feels as if it is one with the wall.

Easy Operation

Intuitive Operation


  • One screen per operation
  • UI: Swipe up/down, left/right

    Up/down: Adjust the setting (e.g., temperature) up or down

    Left/right: Scroll through the settings

  • Minimal screen transitions

Wireless RC Functions


  • Includes all conventional wireless RC functions
  • Also includes Powerful/Outdoor unit low noise/Minimum heat

Customer Comfort

Check the operating status even when KAGAMI is not in use.


Blue: Cooling

Red: Heating

Green: Dry

White: Fan

Screen with Anti-fingerprint Coating


Reduces visibility loss associated with fingerprints, natural oils from skin, and mirror glare.

Glossy Screen: fingerprints / mirror glare, Anti-fingerprint Coating: Transparency

Big Display


The large display fonts allow important information to be seen from up to 20 inches during operation.

Room Temperature Display


Certain information can be viewed at all times on KAGAMI including current time, room temperature, and timer control.

Viewable Information * Based on a North American survey

  1. Room temperature
  2. Operation mode
  3. Set temperature
  4. Fan speed
  5. Timer control on/off(Time)

#1 and #5 are always displayed in the information area on the top left.

#2 through #4 can be checked on the screens for each setting.

#2 is visible from the color of the remote controller LED.

Tap the information area to learn more about the status.

*
The screens are under development and may be changed during the development process.

Adopted Color LCD


New Functions for Hotels

Logo Display for Hotels


KAGAMI can be customized with logos from hotels or other properties. Images are sent via BLE* connection where data is saved on the flash ROM built into each controller.

Limited Visibility of Settings for Hotels


KAGAMI features a function that enables hotels and other clients to “hide” settings from the displays so that their guests cannot change system settings.

Settings are possible through the smartphone app via BLE* connection to the remote controllers. (Settings can also be adjusted manually on the remote controllers as usual.)

*
BLE: Bluetooth Low Energy

Installation/Maintenance

Smartphone Application


To improve workability, our smartphone app now enables users to make initial settings of the remote controllers and adjust function settings of the indoor unit via BLE*1 connection.

Settings can also be adjusted manually on the remote controllers as usual.

Method 1

Send the setting values entered by the smartphone to the remote controller*2

Method 2

Read the setting values of a different remote controller and send a copy of them*2

Step1: Read setting values on the remote controller

Step2: Copy the setting values to a different remote controller

*1
BLE: Bluetooth Low Energy
*2
Smartphone: Wired Remote Controller = 1 : 1

Support Functions


Display Contractor Contact Information

The remote controllers can retain and display HVAC contractor contact information. Contact information can be sent from the smartphone app to the remote controllers via BLE*.

*
BLE: Bluetooth Low Energy

Refrigerant Cycle Monitor

Wired Remote Controller (Touch Panel) will support the display of certain sensor values for maintenance and service support.

Setting App for Wired Remote Controller (For iOS and Android Devices)


AIRSTAGE Remo Set (Free)

This app is for technicians to set the Wired Remote Controller. Also, technicians can set the system’s Function setting by using this application, and then connecting to the remote control via Bluetooth and send the files to easily complete setting.

*
Only UTY-RVRU remote control can be connected with this application currently.

Main screen

Setting screen

Download on the App Store
For iOS

GET IT ON Google Play
For Android


*
The company names and brand names referred to in this page are themselves the trademarks, registered trademarks, and products of the respective companies.
*
Screens, figures and movies are only for explanation.
